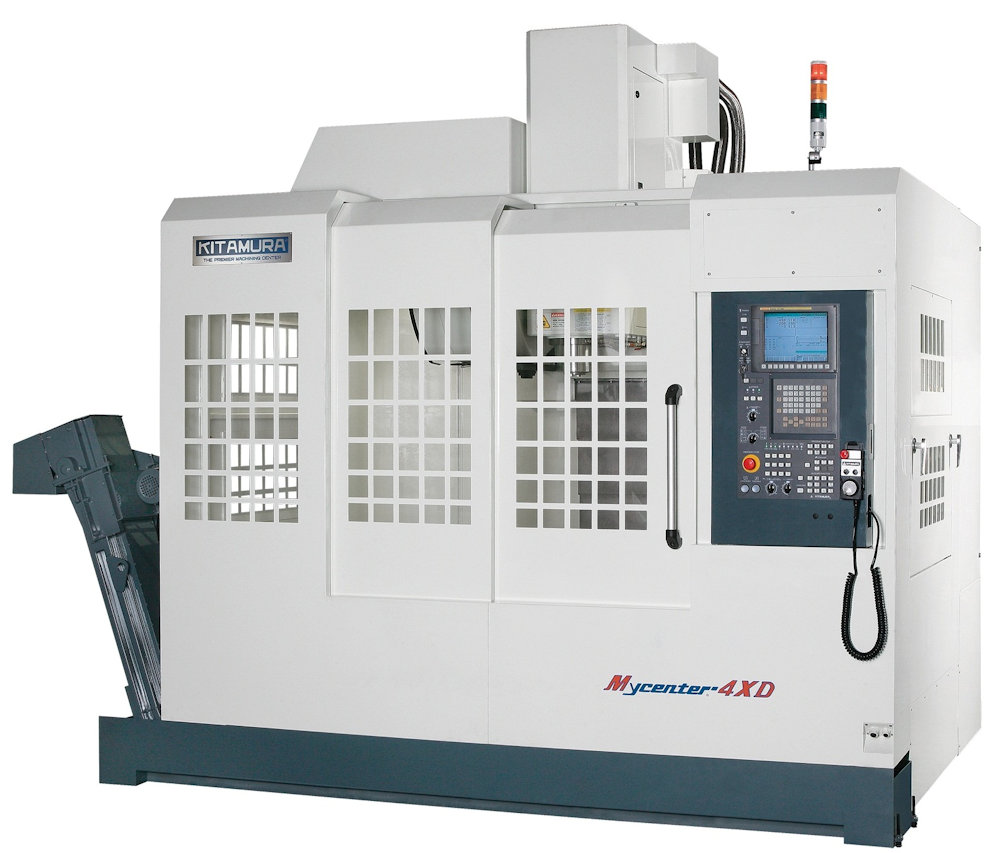

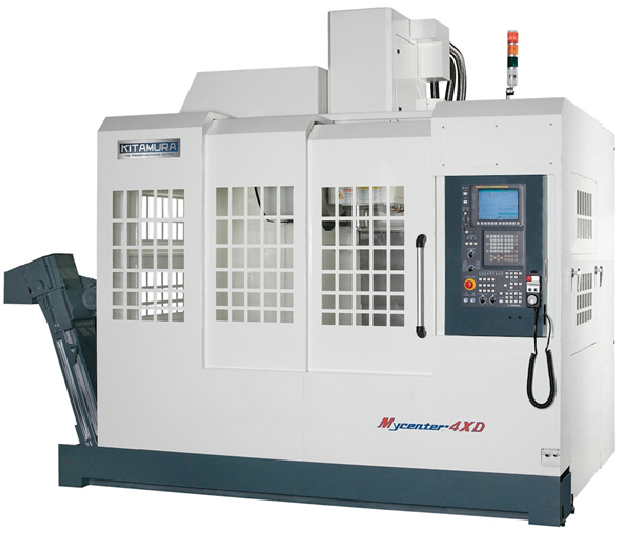

CNC Vertical Mill Kitamura 4XD

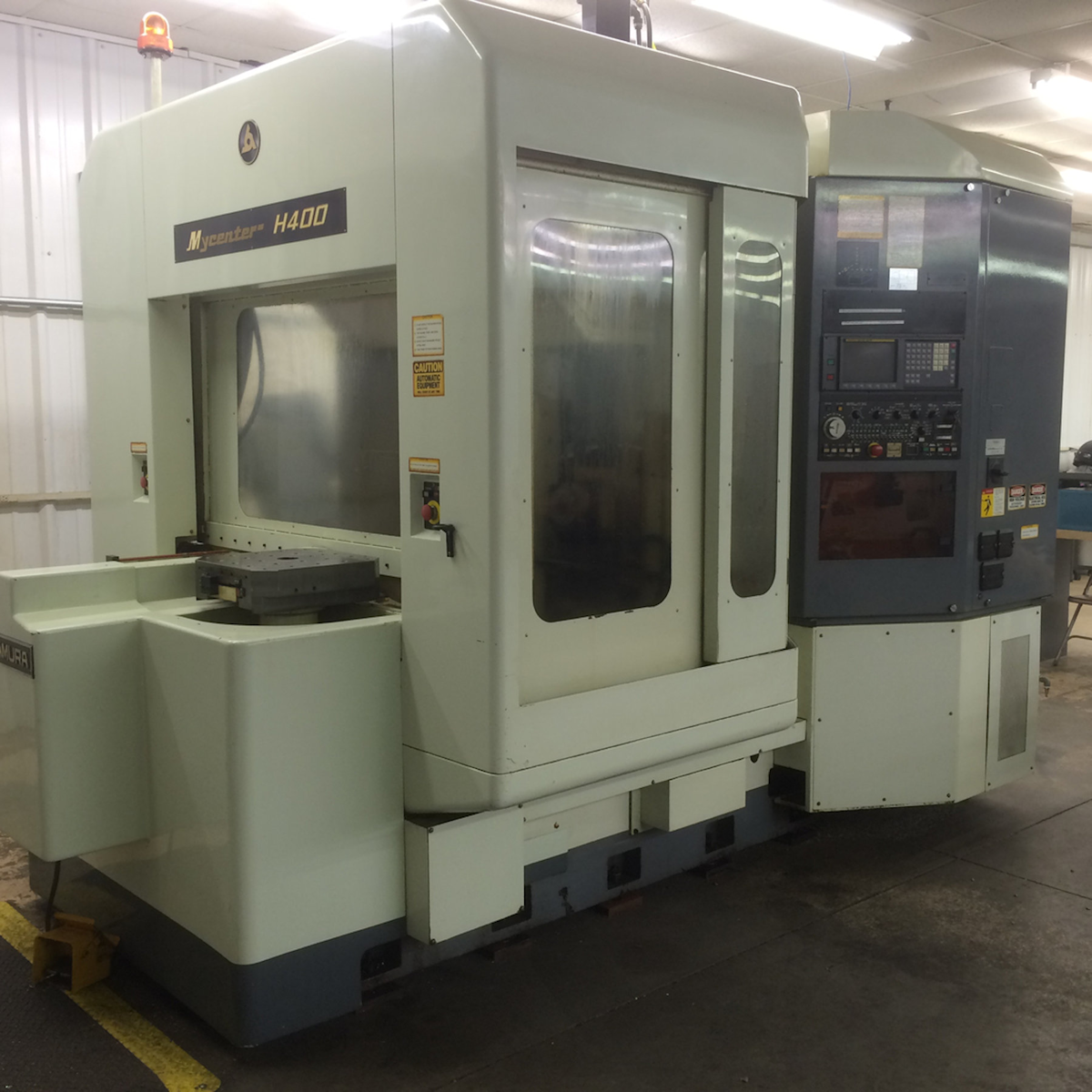

Kitamura H400 CNC Horizontal Milling Machine

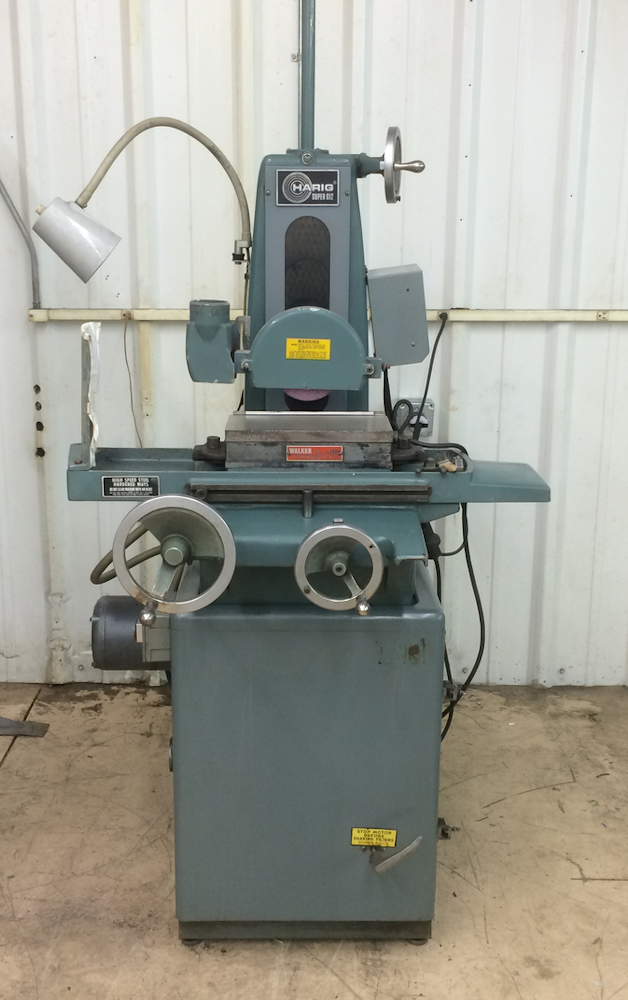

Harig Super 612 Manual Grinder

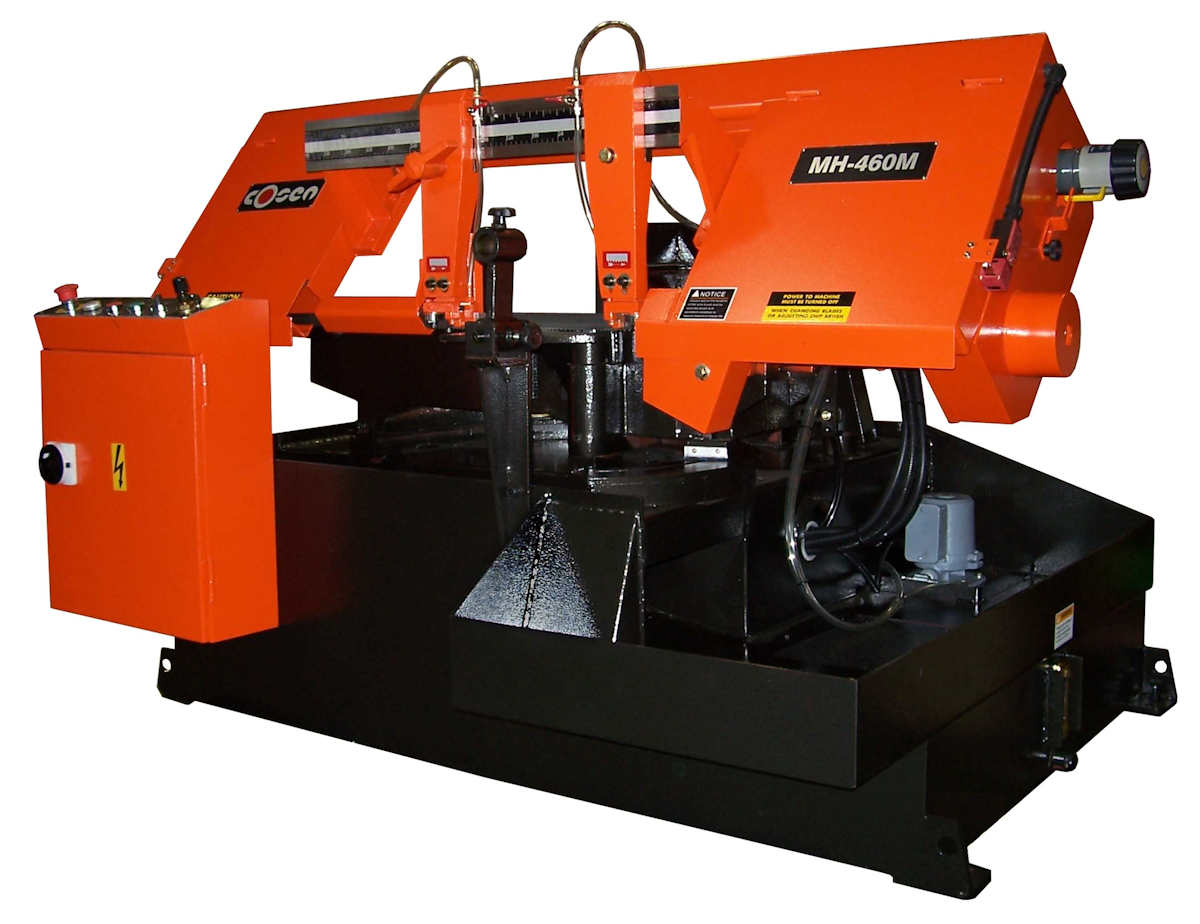

Cosen MH-460M Saw

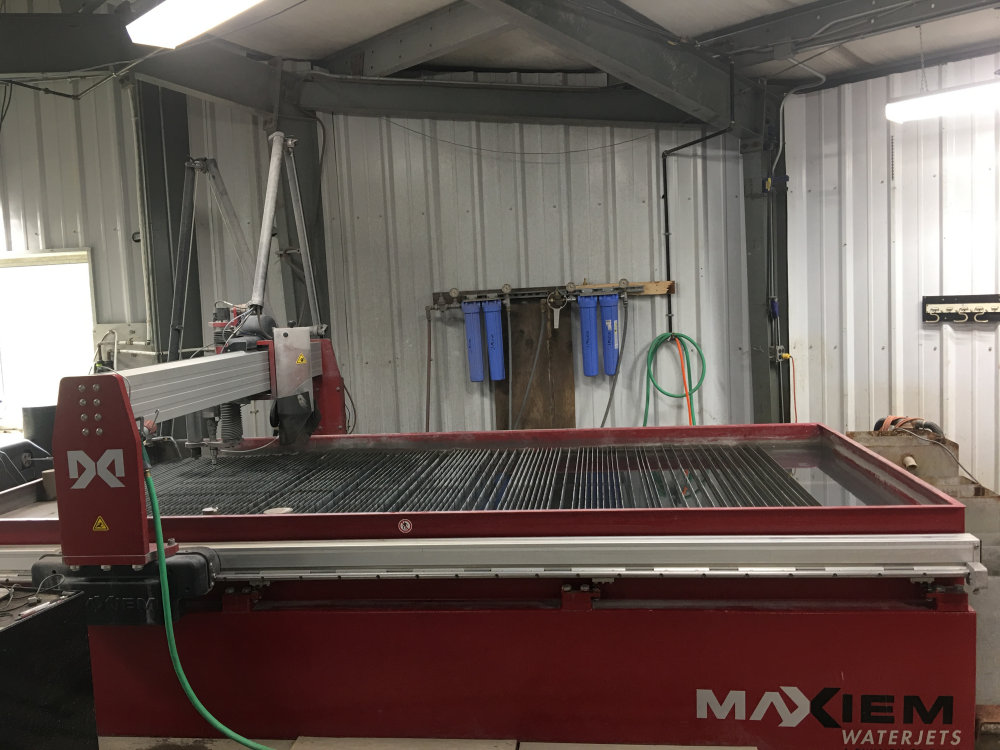

Flow Water Jet
EQUIPMENT

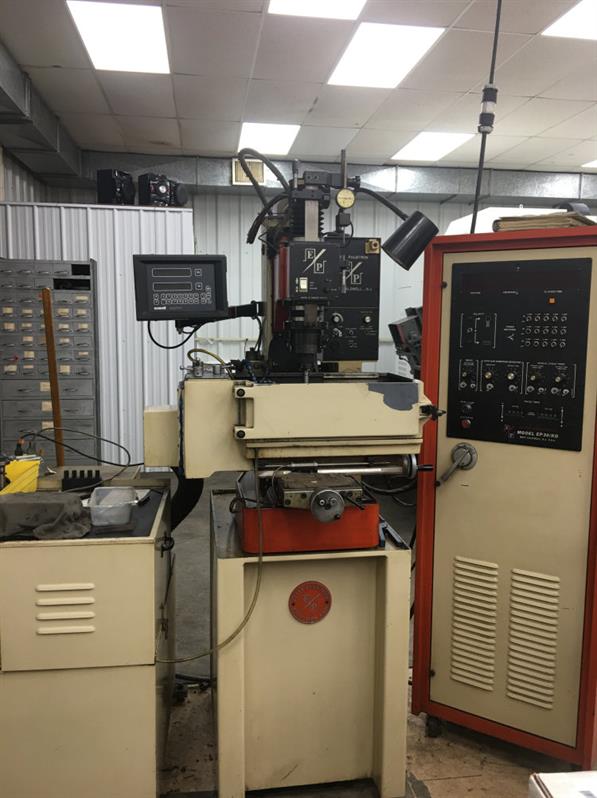

Charmilles Roboform 31 Ram EDM

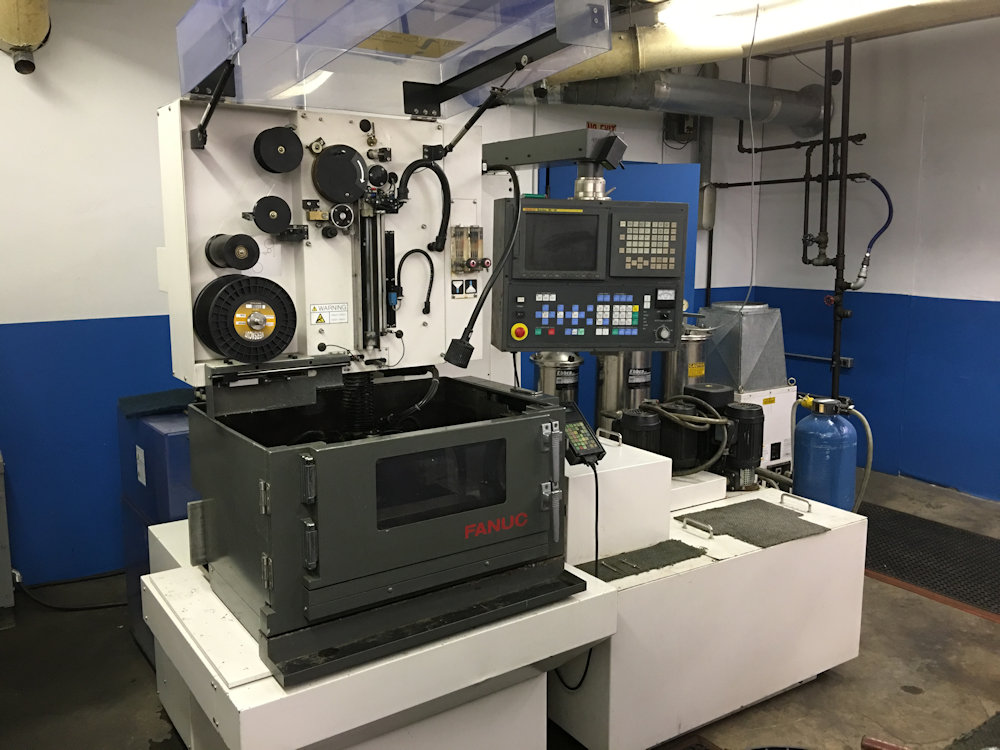

Fanuc Robocut Wire Alpha-oiA
Starrett Precision Surface Plate
15,000 RPM Spindle

Travels: 43" X-axis, 24" Y-axis, 24" Z-axis

Coolant through the Spindle
10,000 RPM Spindle

Pallet size of 15.75" X 15.75"

Travels
: 24" X-axis, 20” Y-axis, 20" Z-axis

B-axis with .001*-360* rotation
6” x 12” Variable Electromagnetic Powered Walker Chuck
Cutting Capacity

0* - Round 10”, Rectangle 9” x 18”

45* - Round 9”, Rectangle 9”x 9”

60* - Round 4.3”, Rectangle 9” x 4.3”
Max workpiece Dims 26” x 17” x 7”

Travels: 12.6" X-axis, 8.7" Y-axis, 7.0" Z-axis
36” x 36” Inspection plate
60,000 PSI
Travels: 48” X-axis, 96” Y-axis, 6.0” Z-axis

Example of materials that can be cut are: Steel, Plastic, Ceramics, Aluminum, Silicone, Neoprene, & Rubber
16 Position Tool Changer

3R Tooling System

Max Workpiece Dims 20” x 16”

Travels:  14" X-axis, 10" Y-axis, 12" Z-axis
